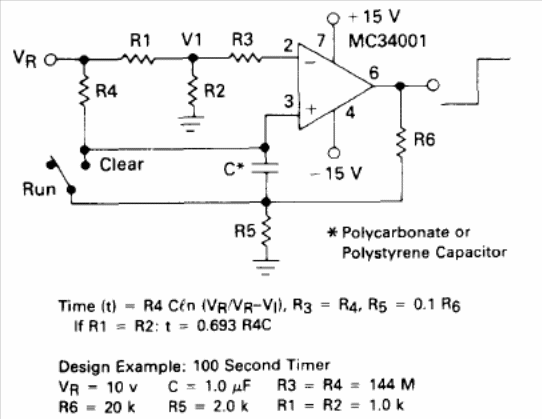

The circuit shown is from Motorola's 1990 Linear Databook. The operating circuit is not common today but can be replaced by a more current equivalent. Formulas for component calculations are given next to the diagram.
Long Intervals Operational TimerMC34001 (CB14473E)
- Details
- Written by: Newton C. Braga
