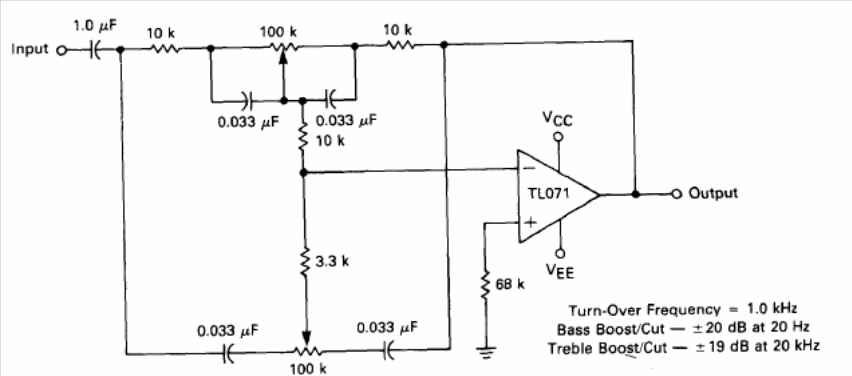

Tone Control TL071 (CB14499E)

Details
Written by: Newton C. Braga



We have already presented this circuit, obtained from manuals from other manufacturers of the used integrated circuit. This is specifically from Motorola's 1990 Linear Databook.




| Clique na imagem para ampliar |
