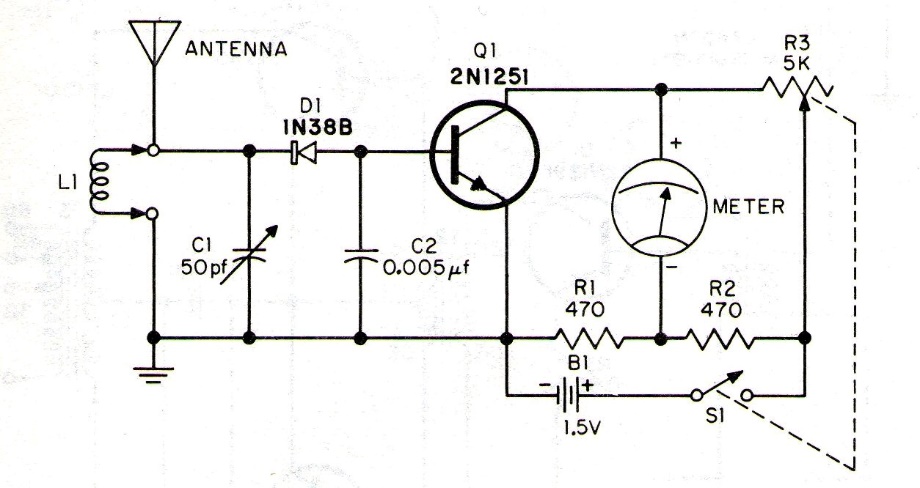

We found this circuit in an American documentation from 1964, but it can be easily assembled today, as the components are not critical. The circuit serves to evaluate the emission of radio-amateur transmitters. The L1 coil depends on the analyzed frequency range.
| Clique na imagem para ampliar |
