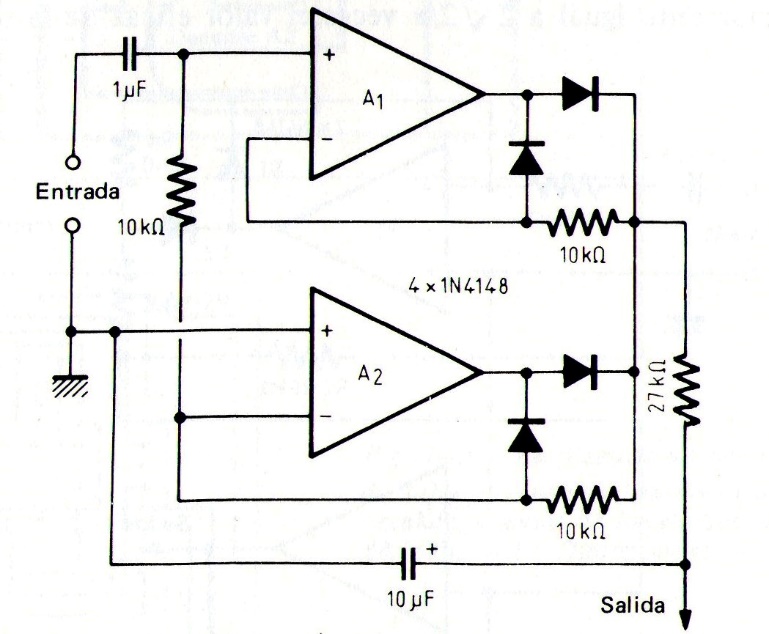

This symmetrical configuration uses two operational amplifiers to obtain the rectification of a full wave signal. The power source must be symmetrical, and the circuit applies to almost any operational amplifier.
| Clique na imagem para ampliar |
Operational Full Wave Rectifier (CB14842E)
- Details
- Written by: Newton C. Braga
