4093 Fast Pulse (CB14964E)

Details
Written by: Newton C. Braga

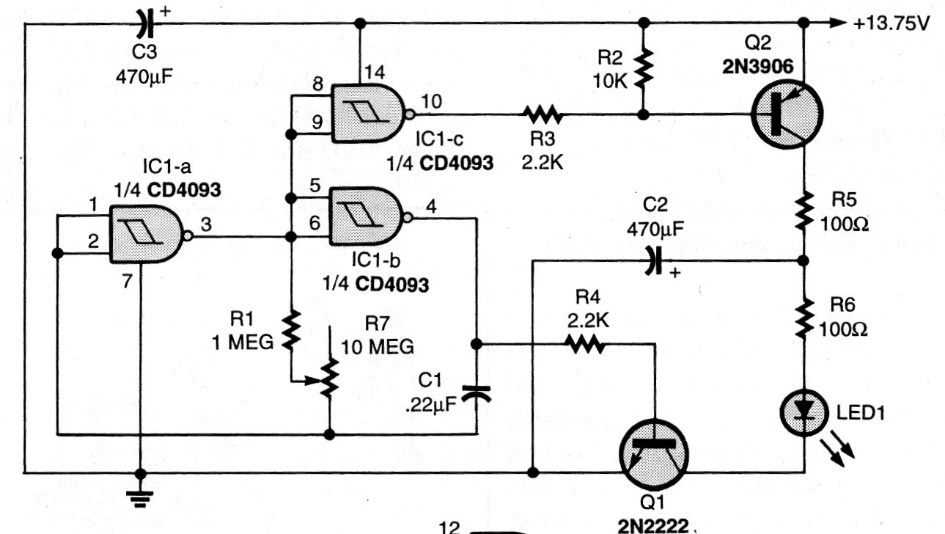

We found this configuration in a 1990 Poptronics. The circuit can be powered by voltages between 6 and 15 V, changing the resistors in series with the LED. The frequency is set at R7.
