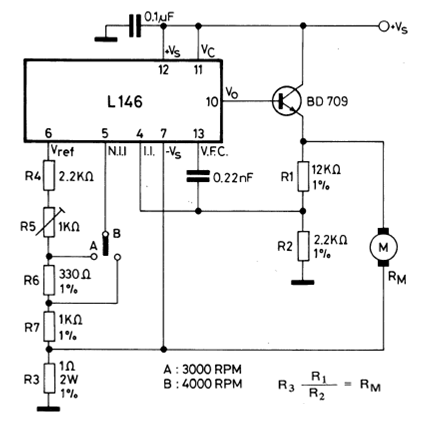

We found this circuit in the 1982 SGS Linear Integrated Circuits manual. The circuit is integrated is uncommon today and the transistor can be replaced with an equivalent according to the motor.
Motor Speed Control L146 (CB15132E)
- Details
- Written by: Newton C. Braga
