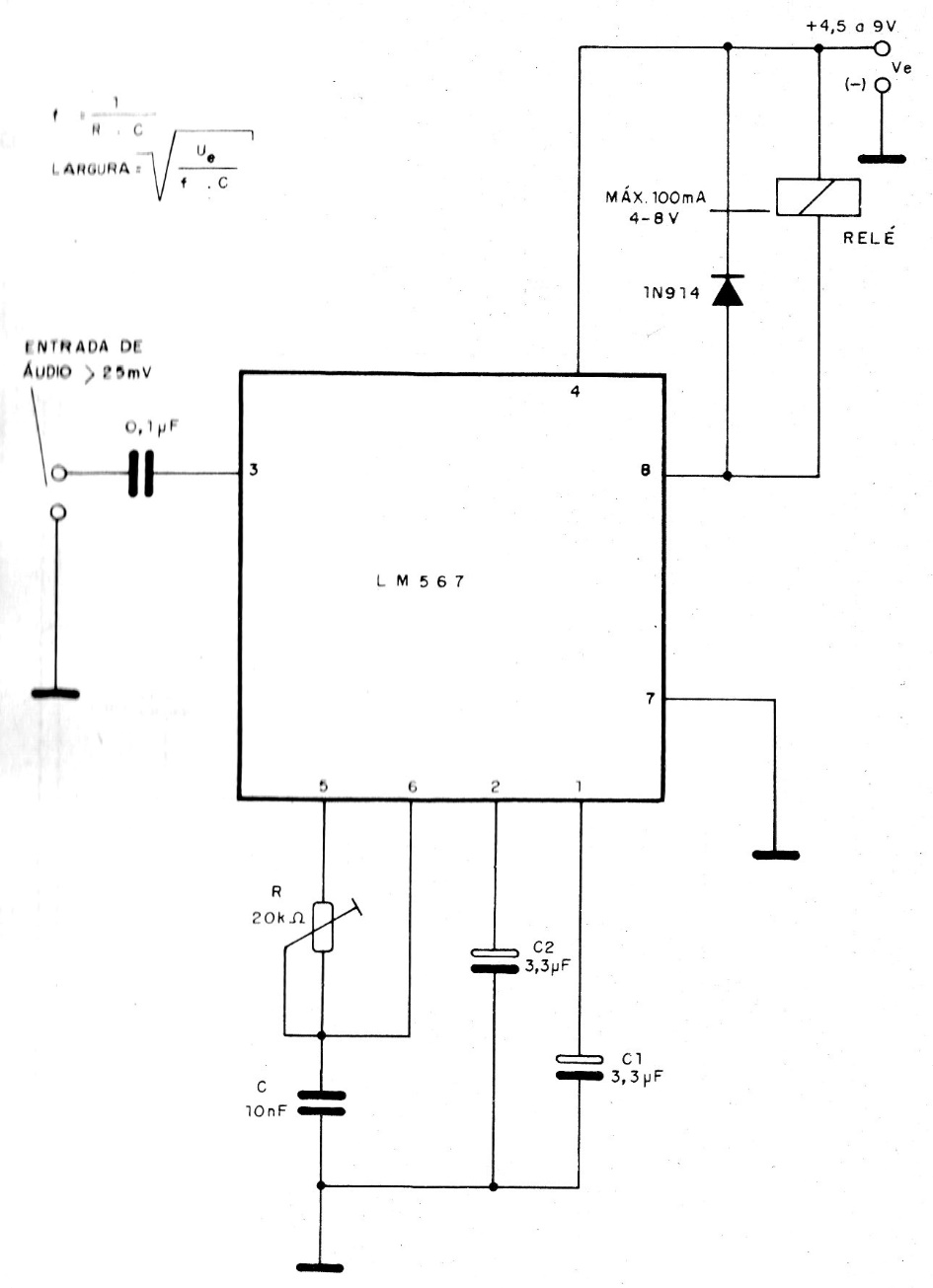

This circuit activates a relay with a frequency signal determined by the adjustment components. The circuit must be supplied with voltages in the indicated range and if the relay is not sensitive, an amplification step must be added. The formula next to the diagram makes it possible to calculate the components.
