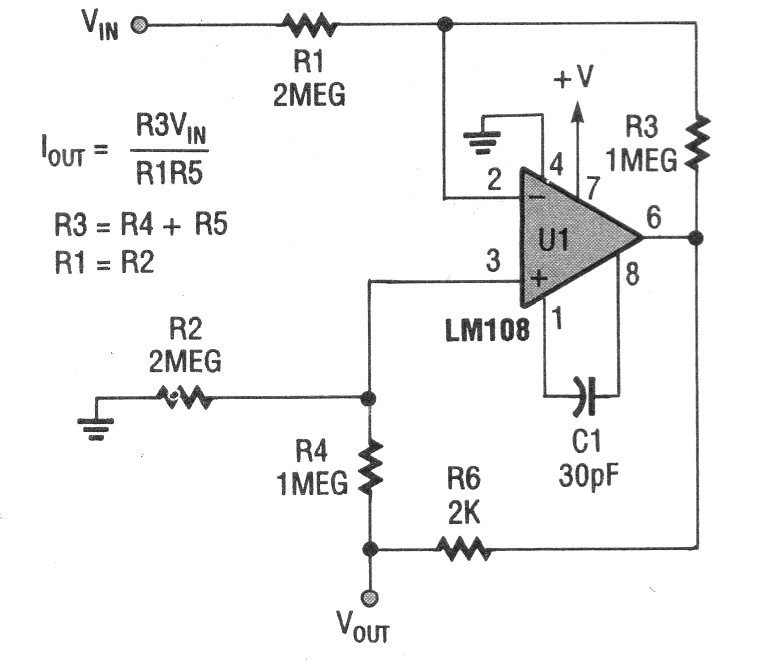

The circuit shown consists of a bilateral constant current source with an operational one that admits equivalent. The current values as a function of the components are calculated by the formula next to the diagram. We found this circuit in a 90s documentation.
