Current and Voltage Regulator (CB15148E)

Details
Written by: Newton C. Braga

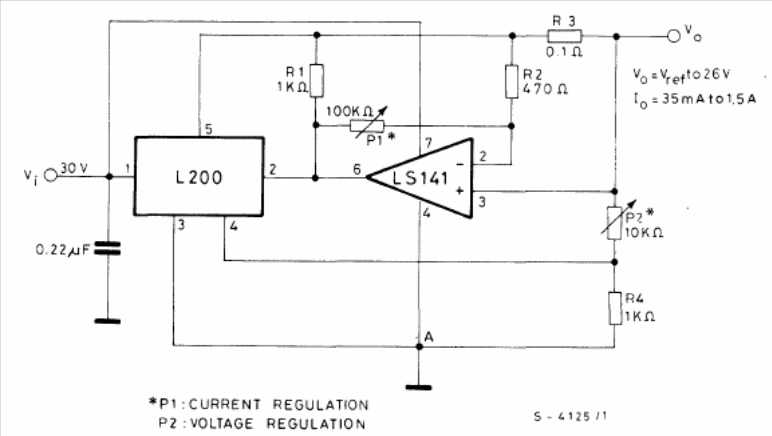

This circuit is from the 1982 SGS Linear Circuits Manual. The circuit provides currents from 35 mA to 1.5 mA set at P1 and Vref voltages at 26 V set at P2.




| Clique na imagem para ampliar |
