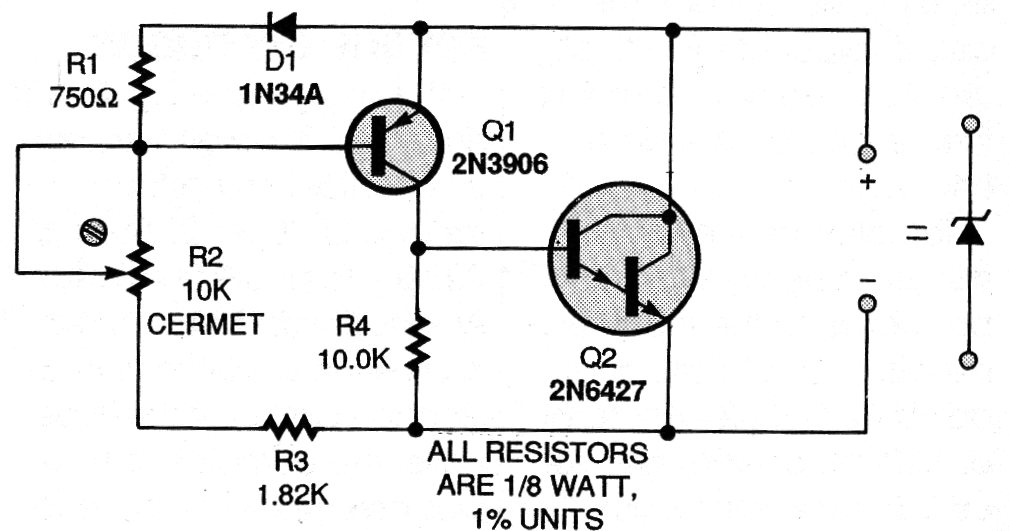

The presented circuit simulates a high power zener that depends on the characteristics of the Darlington used. This transistor can be any one of the TIP series. The adjustment of the simulated zener voltage is done in a trimpot. The power transistor must be equipped with a heat sink.
