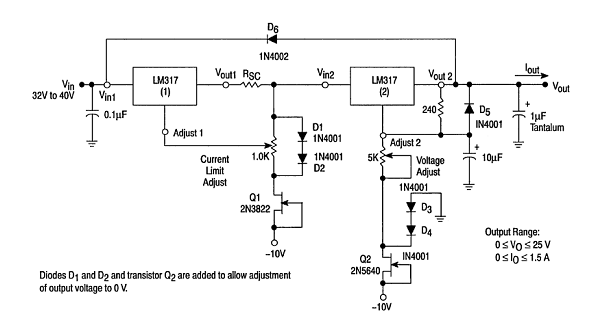

This configuration, which appears in the manual of other manufacturers, is an excellent 1.5 V source for the laboratory. The LM350 for 3A can also be used. The circuit is from Motorola's 1993 Linear Interface ICs.
Adjustable 25 V x 1.5A Power Supply LM317 (CB15313E)
- Details
- Written by: Newton C. Braga
