Flasher LM2931 (CB15324E)

Details
Written by: Newton C. Braga

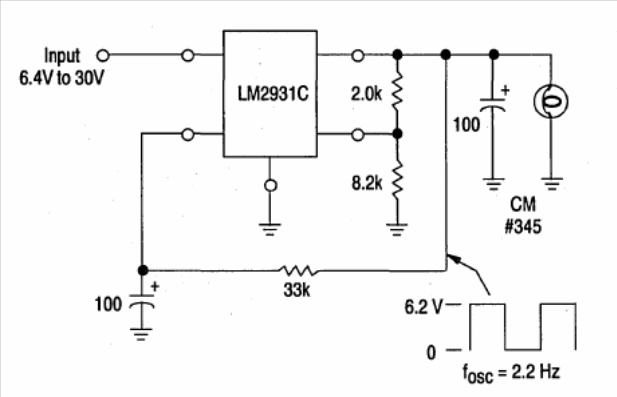

This circuit, from Motorola's 1993 Linear Interface ICs. The circuit causes a lamp to blink at a frequency determined by the capacitor and the 33k resistor.
