Diode Regulated Twin T Oscillator (CB14910E)

Details
Written by: Newton C. Braga

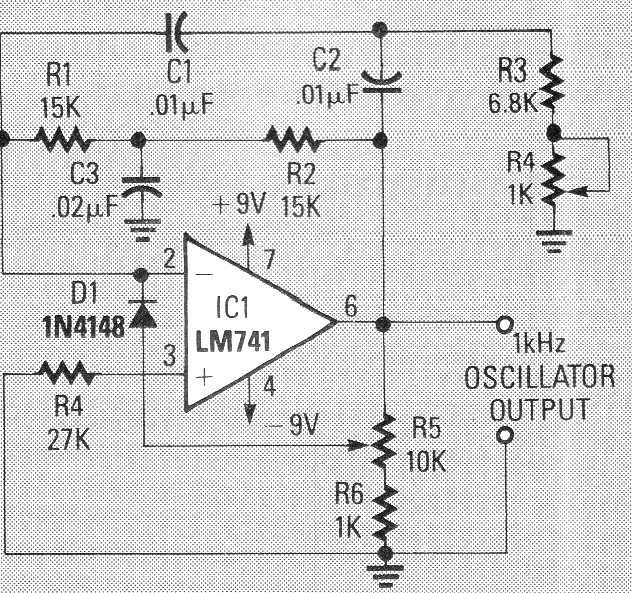

We found this circuit in a 1989 Radio Electronics. The circuit can be implemented with other operational ones and the power supply must be symmetrical. The frequency of the sinusoidal signal is 1 kHz.
