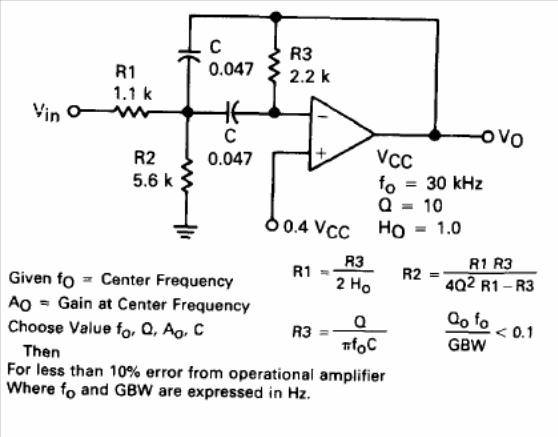

The circuit shown is from the Motorola Linear Databook of 1990. In the example, the components are for the frequency of 30 kHz, but they can be changed to other frequencies, according to formulas next to the diagram.
Operational Band Pass Fctive Filter (CB14441E)
