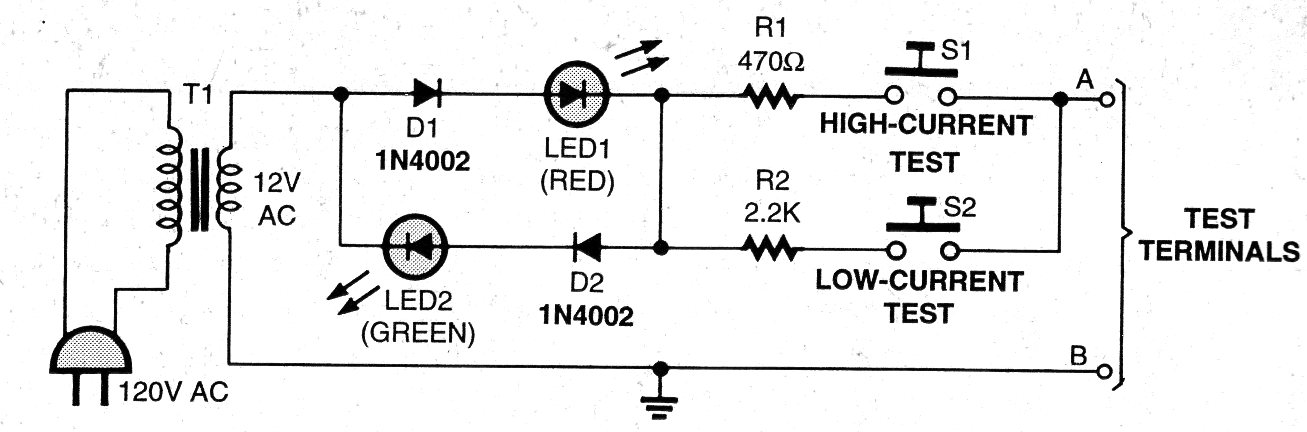

The circuit shown is for testing both signal diodes (low current) and rectifiers (high current). The circuit is from a 2000 Poptronics, and the transformer has a secondary winding of 100 to 300 mA.
