This circuit is from the 1984 Intersil Databook. The 8038 is not a common circuit today. The source must be symmetrical from 6 to 9 V and the frequency is determined by RA, RB, and C.
| Clique na imagem para ampliar |

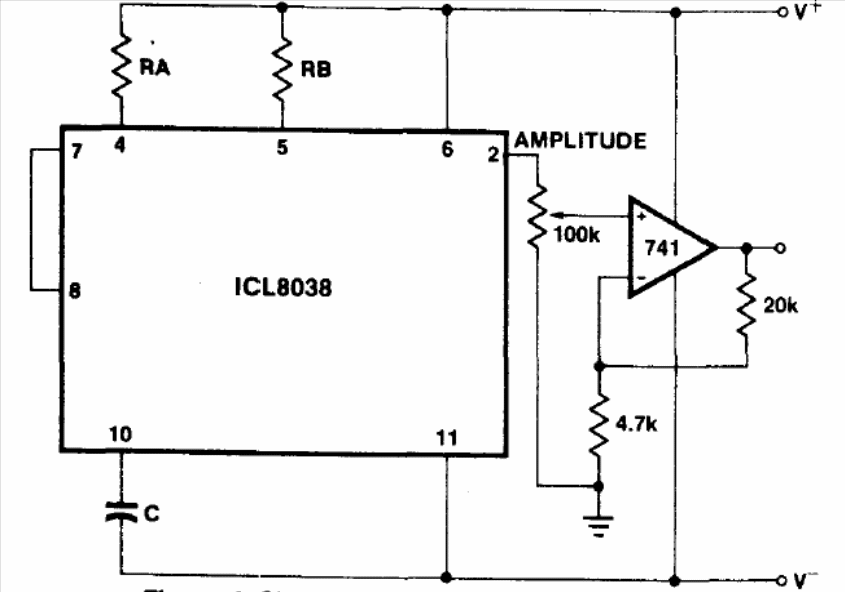

Sinusoidal Oscillator 8038 with Buffer (CB15363E)
