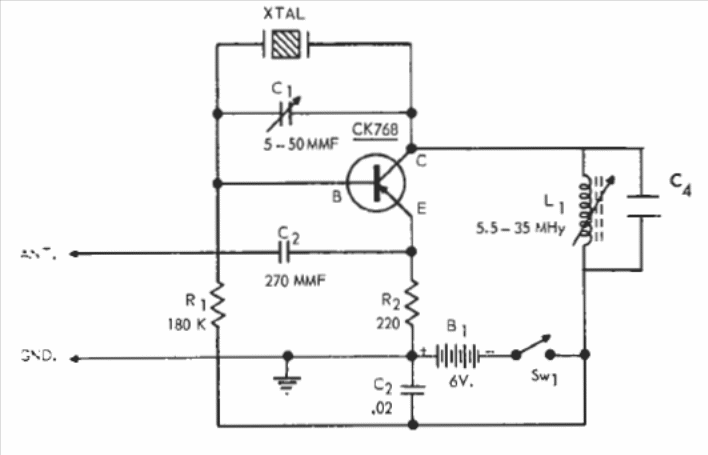

Crystals from 100 kHz to 1 MHz can be used in this 1957 Raytheon circuit. 4 can have values between 47 pF and 470 pF depending on the frequency of the crystal. Modern equivalent transistors can be used.
| Clique na imagem para ampliar |
Crystal Oscillator (CB14738E)
- Details
- Written by: Newton C. Braga
