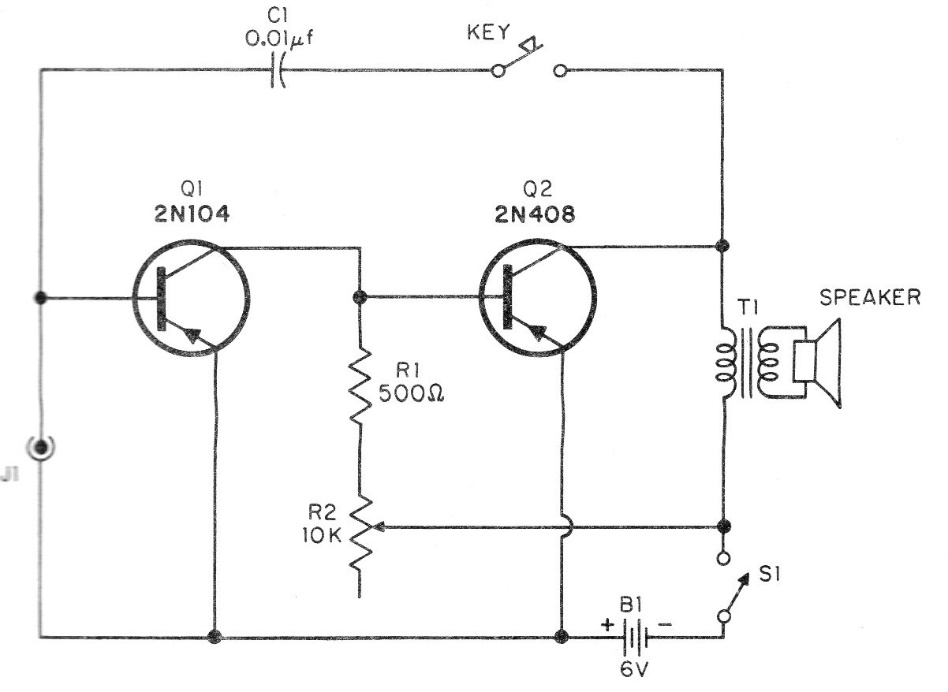

We found this circuit in a 1964 publication. The circuit is both an amplifier and an oscillator for the practice of telegraphy with the sound determined by C1. The transformer is an output type for transistors and BC558 transistors can be used in place of the original types.
