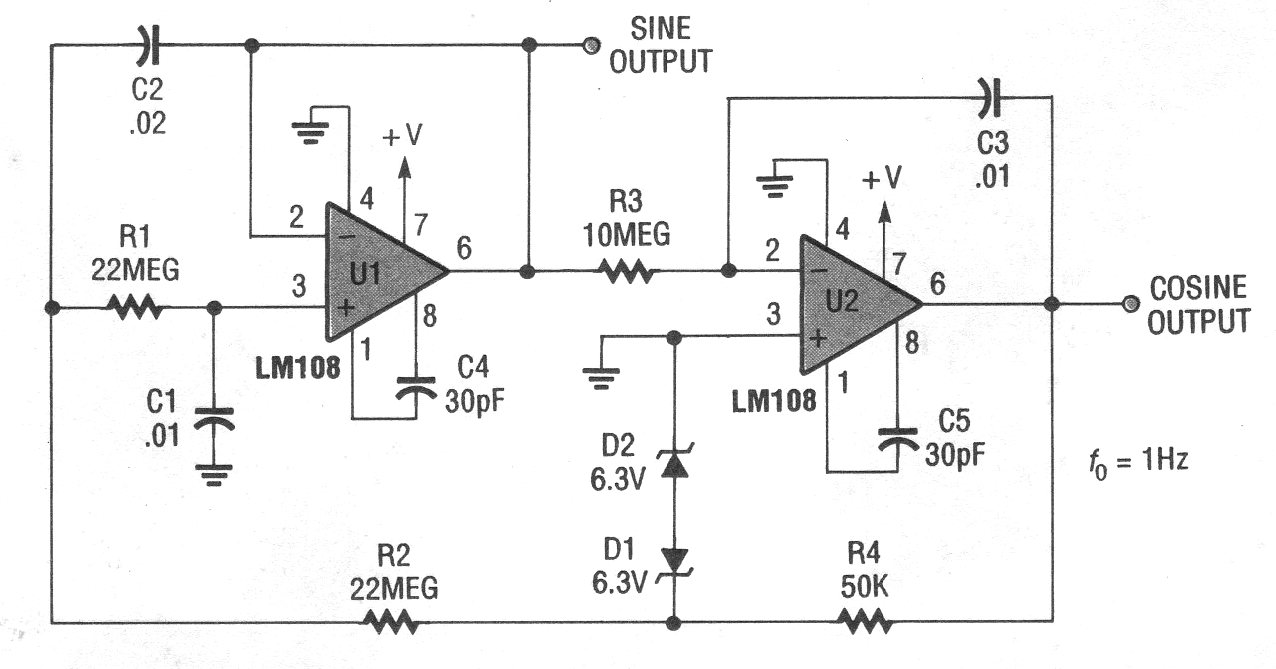

This circuit generates complementary sinusoidal signals in frequency determined by C1 and C2. For the given values, the frequency is 1 Hz. The operational can be 741 and the power supply need not be symmetrical. We found the circuit in an American documentation from the 90s.
