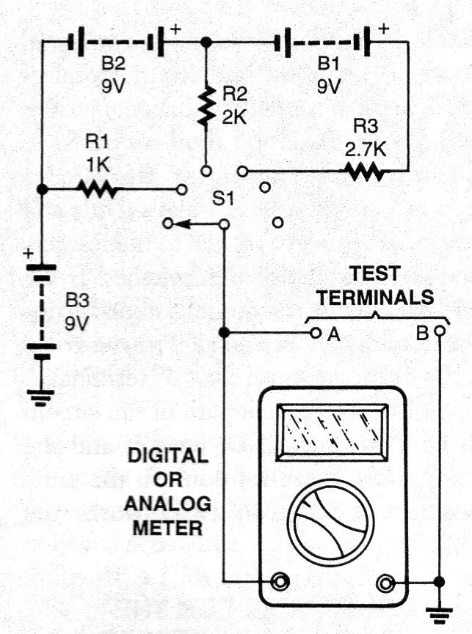

This circuit can be used to test zener diodes up to 25 V using a standard multimeter. The voltage scale of the multimeter reads the voltage of the zener, if it is good. The circuit is from 2000 documentation.
Zener Diodes Test (CB15090E)
