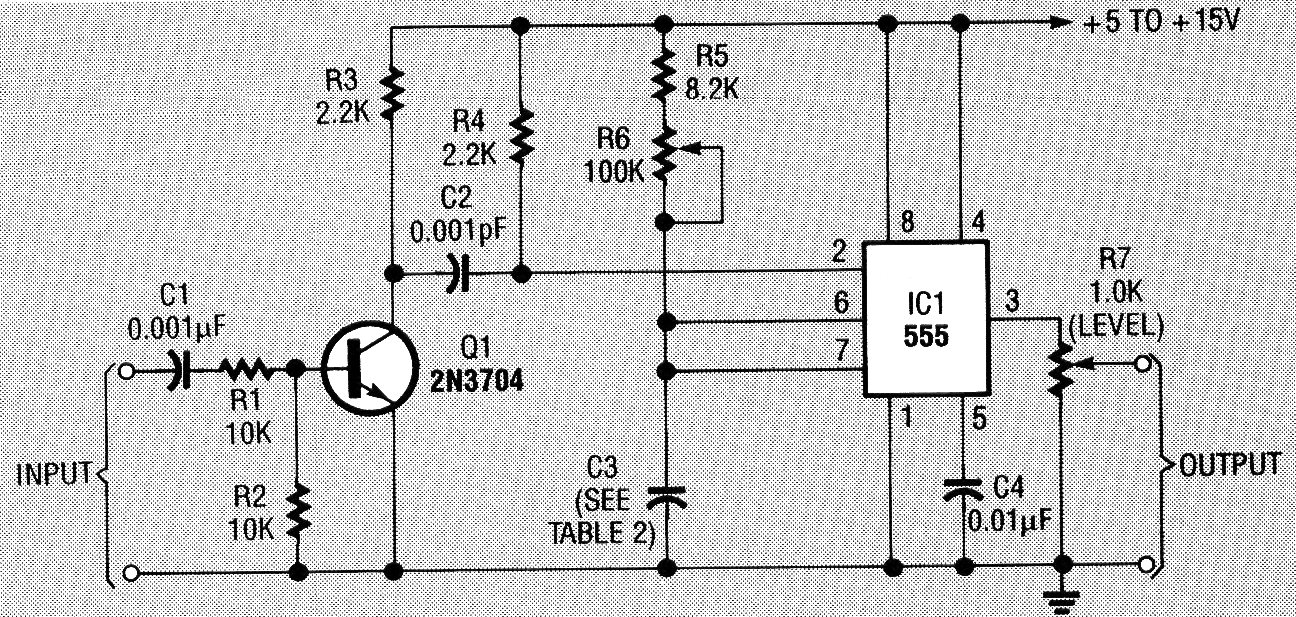

When excited by a pulse of variable width at the input, this circuit produces a pulse of constant duration determined by C2 and set at R6. The transistor can be a BC548 and the minimum pulse duration is determined by the 555 characteristics. The circuit is from a 2000 Poptronics.
