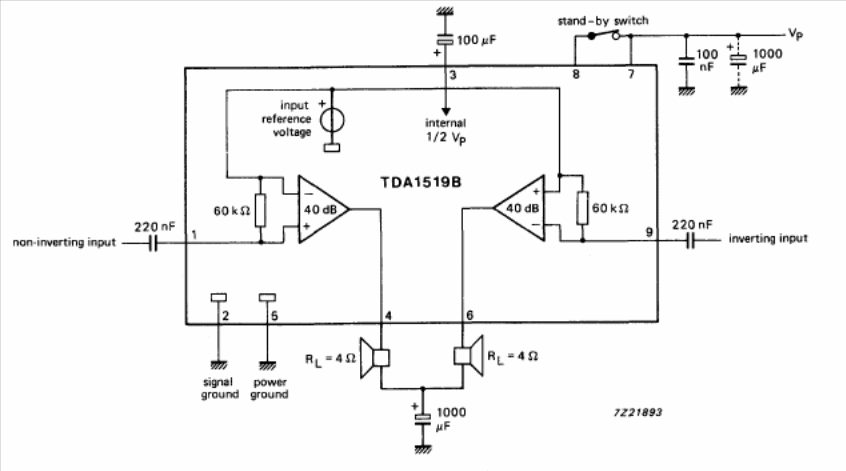

This amplifier, from the 1990 Philips Databook, is suitable for automotive applications. The integrated circuit must be mounted on a heat radiator and the characteristics given in the table below the diagram.
| Clique na imagem para ampliar |
6 W Per Channel Amplifier TDA1519B (CB15383E)
- Details
- Written by: Newton C. Braga
