Electronic Thermostat (CB14820S)

Details
Written by: Newton C. Braga

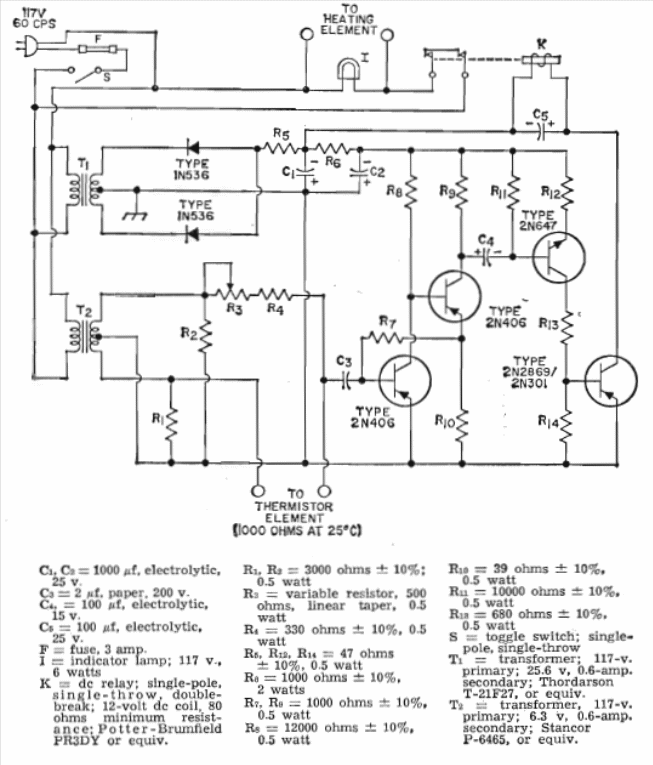

We found this circuit in the 1964 RCA transistors manual. The transistors used are uncommon today, but they can be used equivalent. The circuit controls the operation of a heating element.




| Clique na imagem para ampliar |
