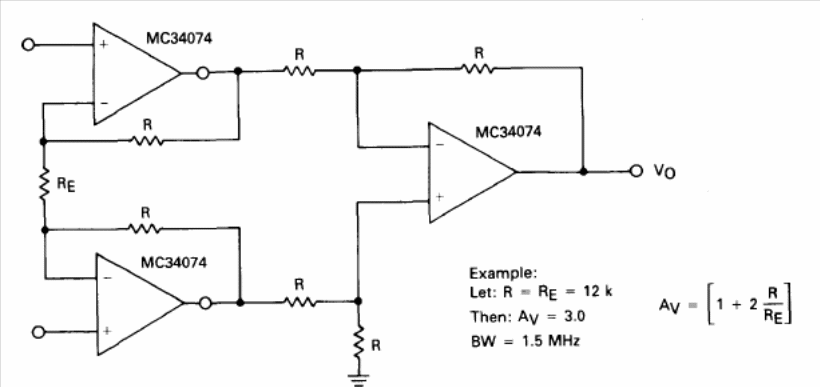

This circuit is from Motorola's Linear Databook published in 1990. We can design it with more modern operators. The power supply must be symmetrical. The values of R are given by the formulas.
| Clique na imagem para ampliar |
High Impedance Differential Amplifier MC34074 (CB14493E)
- Details
- Written by: Newton C. Braga
