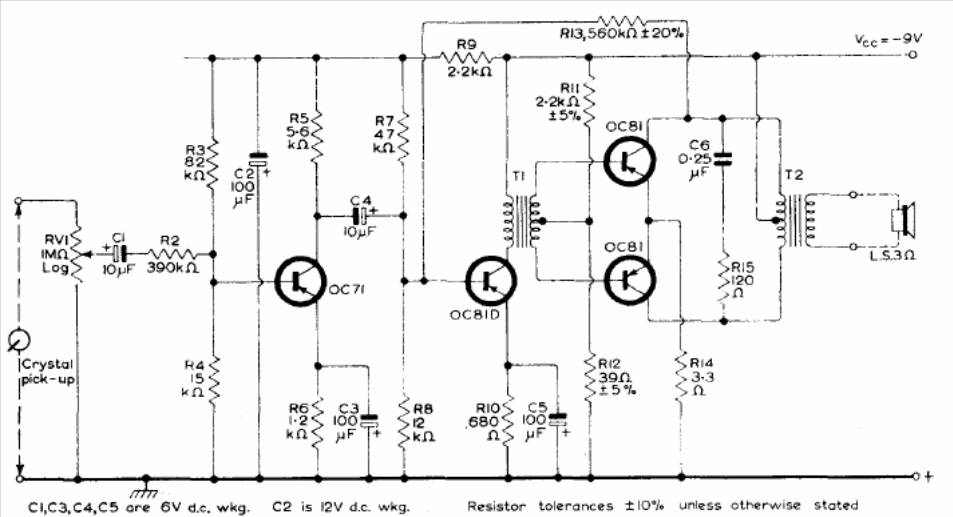

The circuit shown is from the 1960 Mullard transistor reference manual. The circuit has a common configuration at the time, being found in many commercial low-power radios and amplifiers and even recorders.
| Clique na imagem para ampliar |
Germanium Transistors 1W Amplifier CB14764E (CB14763E)
