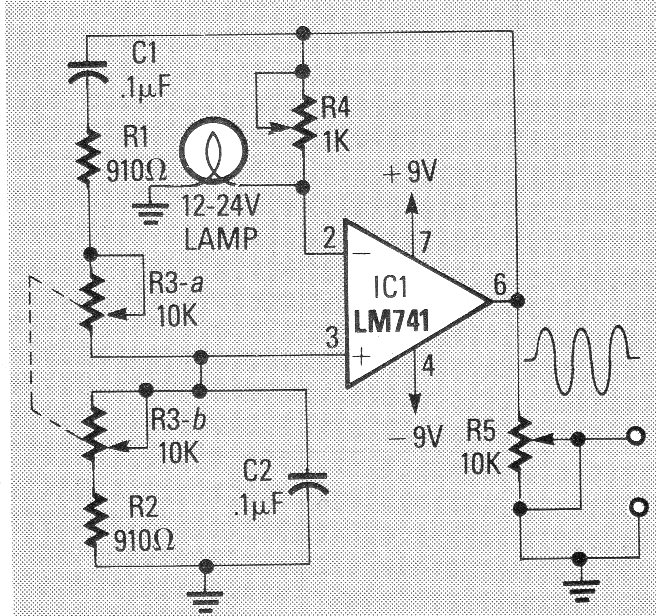

This circuit was obtained in an American publication of 1989, but the components are current. The signal is sinusoidal and for the values of the indicated components the frequency is around 1 kHz. Other operational amplifiers can be used and, the power supply must be symmetrical.
