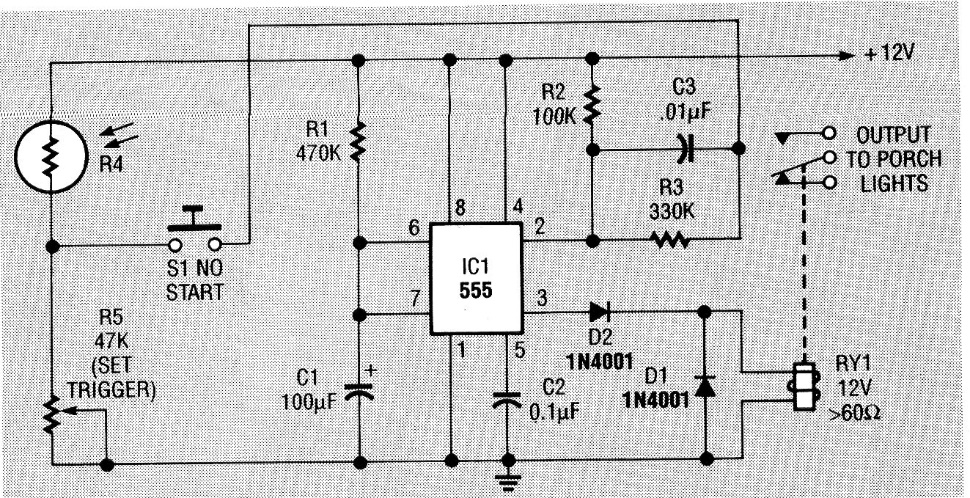

This circuit activates a flashlight for a specified time. The relay is a highly sensitive reed type, and the time depends on R1 and C1, which can be changed according to needs. The circuit is from an American documentation from the year 2000.
| Clique na imagem para ampliar |
