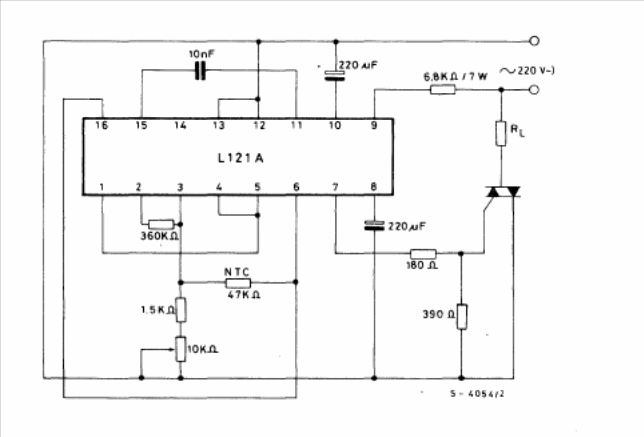

Temperature Control On Off L121 A (CB15128E)

Details
Written by: Newton C. Braga



This circuit was found in the SGS manual of linear integrated circuits of 1982. The circuit employs the L121 A which is a common integrated at the time with included triacs control elements. The triac depends on the controlled load current.
