Centigrade Thermometer ICL7117 (CB15360E)

Details
Written by: Newton C. Braga

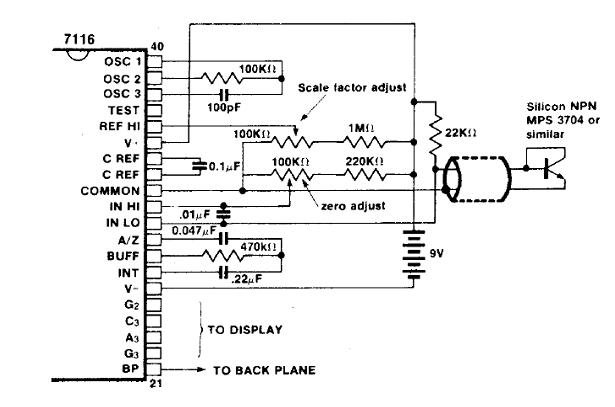

The sensor for this Intersil circuit (1983 databook) is a common silicon transistor. The trimpot adjusts the scale factor and the display is a 4 and a half digits LCD. Power is provided by a 9 V battery.
