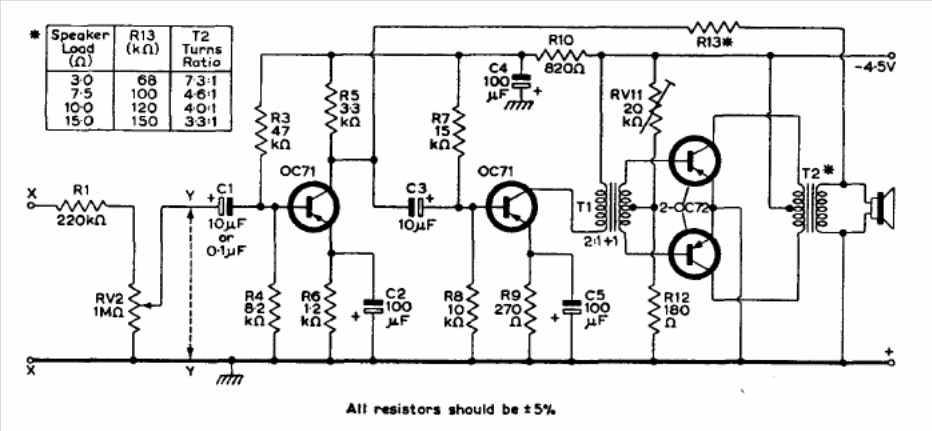

200 mW Amplifier with Germanium Transistors (CB14762E)

This circuit is powered by a voltage of 4.5 V, being common in radios of the 60's. The circuit is from Mullard's transistors reference manual.

| Clique na imagem para ampliar |
