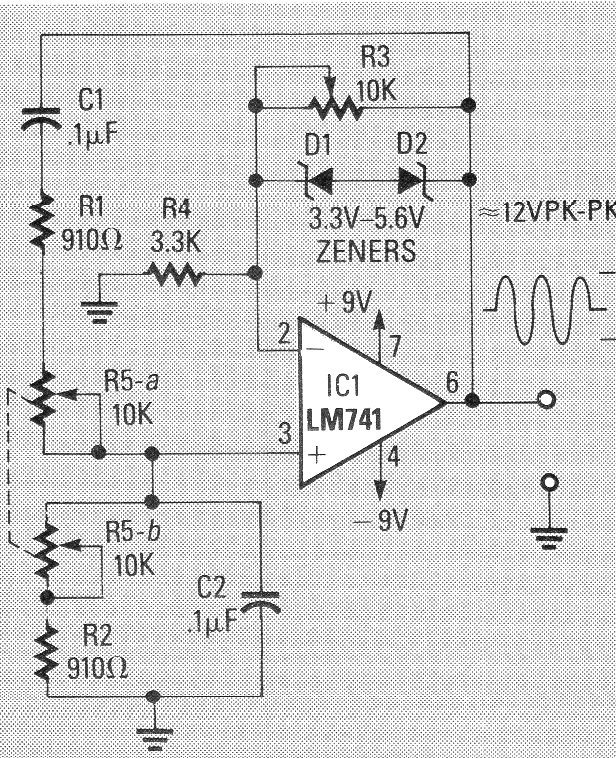

This sinusoidal oscillator was found in Radio Electronics in 1989. It uses a 741, but other operational ones can be employed. The supply must be symmetrical and with the components used the frequency is centered around 1 kHz.
Zener Regulated Wien Oscillator (CB14907E)
- Details
- Written by: Newton C. Braga
