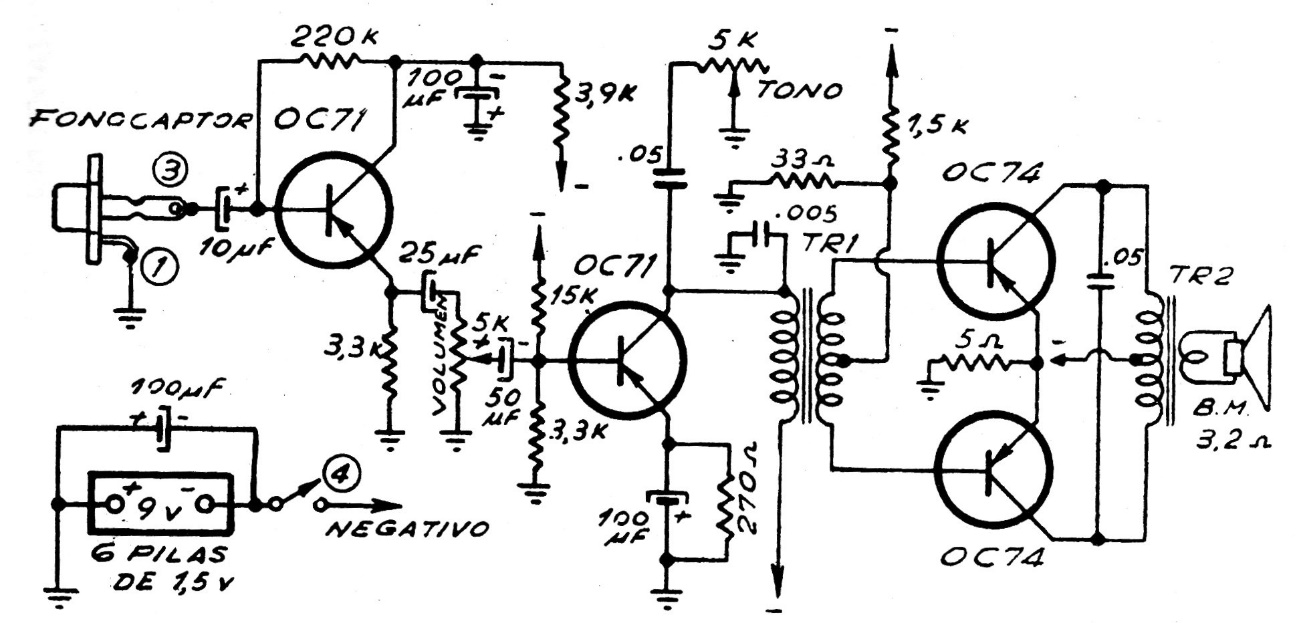

We found this circuit in an old documentation from 1973. The circuit uses germanium transistors, and the critical components are transformers. Power is provided with large batteries, as they also power the turntable motor. The phonocaptor is crystal.
