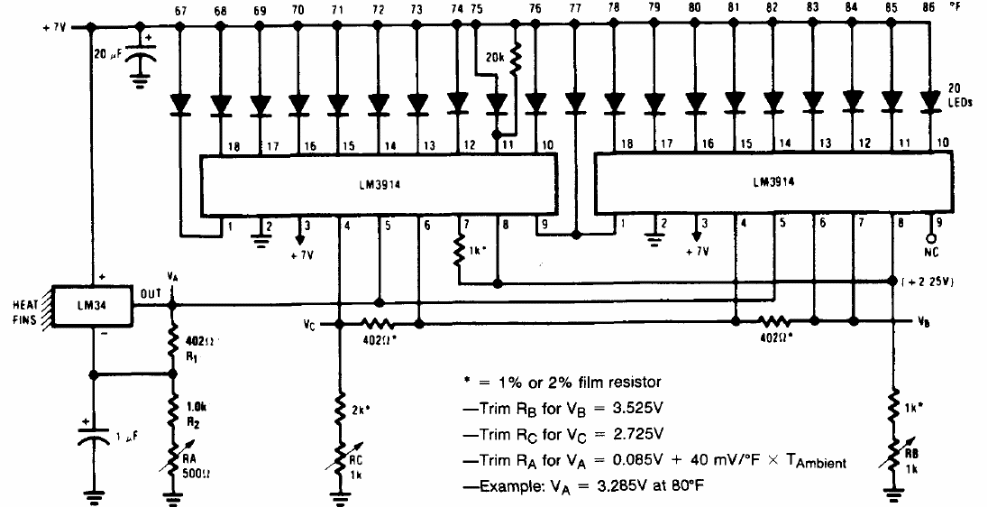

The thermometer presented, for the Fahrenheit scale, is from the Linear Applications Handbook of the National Semiconductor of 1994. The LM34 sensor is not easy to obtain and there is an equivalent for the Celsius scale.
