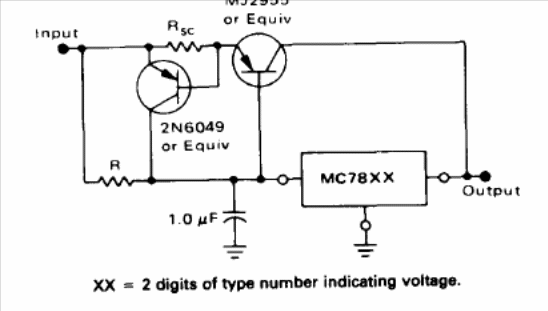

This circuit, for 78xx series integrated devices, is suggested by Motorola in its 1990 Linear Databook. The transistor is the 2N2955, PNP equivalent of the well-known 2N3055.
5 A Regulator with Protection 7800 (CB14534E)
- Details
- Written by: Newton C. Braga
