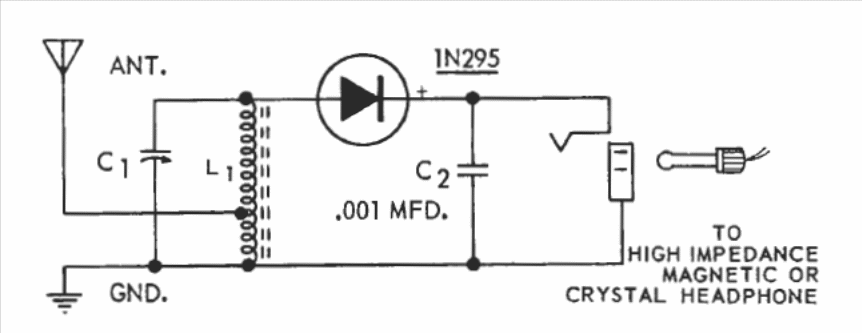

This circuit is from a 1957 Raytheon transistor manual. The diode can be of general-purpose germanium like o1N34 and the coil wound with 30 + 70 turns of wire 28 in a ferrite rod. The antenna must be long, and the handset must be high impedance magnetic.
| Clique na imagem para ampliar |
