20 mA constant power for LED (CB14629E)

Details
Written by: Newton C. Braga

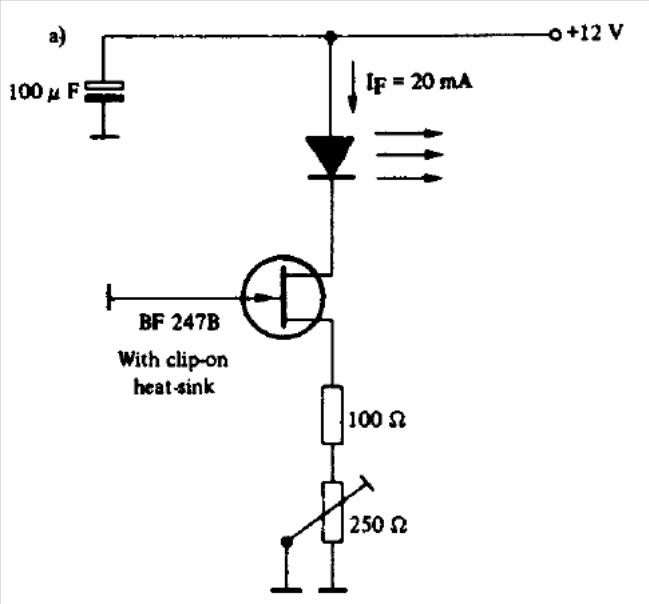

This circuit is from a 1978 Texas Instruments optoelectronics manual. The trimpot adjusts the LED current. Other currents can be adjusted if they are within the capacity of the FET.




| Clique na imagem para ampliar |
