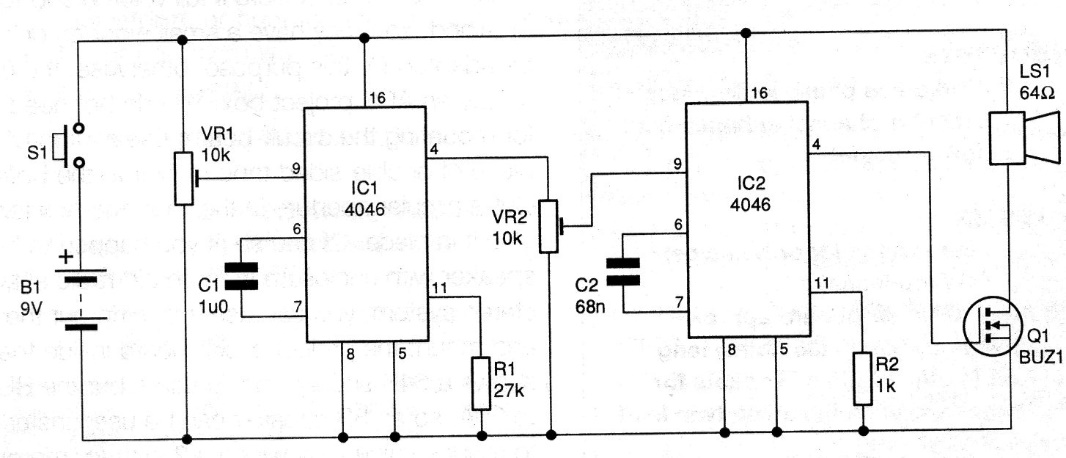

This circuit uses two 4046 CMOS PLLs to produce a modulated signal of good intensity. The MOSFET can be of any type and the speaker must be high-performance. The circuit works with voltages from 6 to 12 V and was found in documentation from the 90s.
| Clique na imagem para ampliar |
