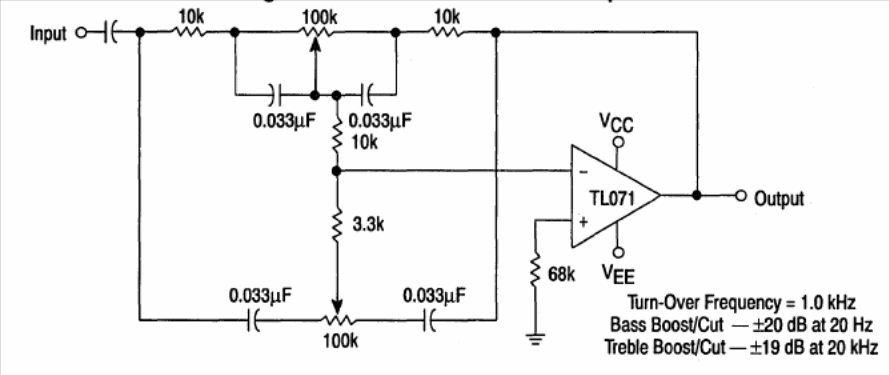

This circuit is from Motorola's Linear Interface ICs of 1993. The circuit can be powered by symmetrical 6 to 12 V voltages and for a stereo version, two channels must be built.
| Clique na imagem para ampliar |
Tone control TL071 (CB15306E)
