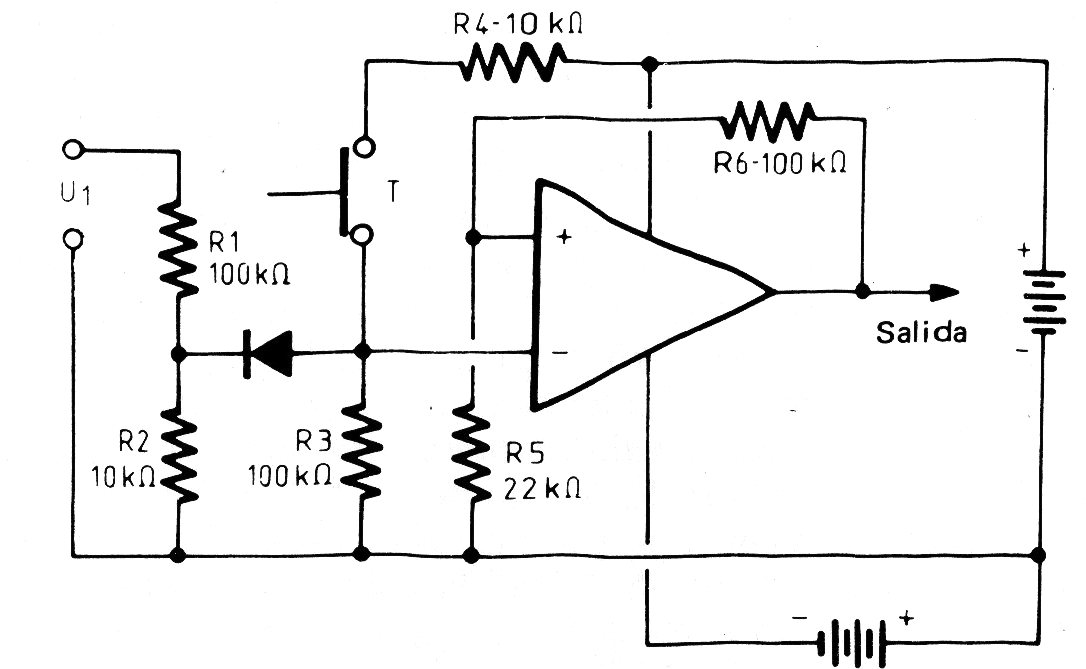

This circuit trips when a negative pulse is applied to its input or when the voltage drops below a value determined by the input components. The circuit is reset in a T-shape and applies to virtually any operating system. We found this circuit in an 80's documentation.
