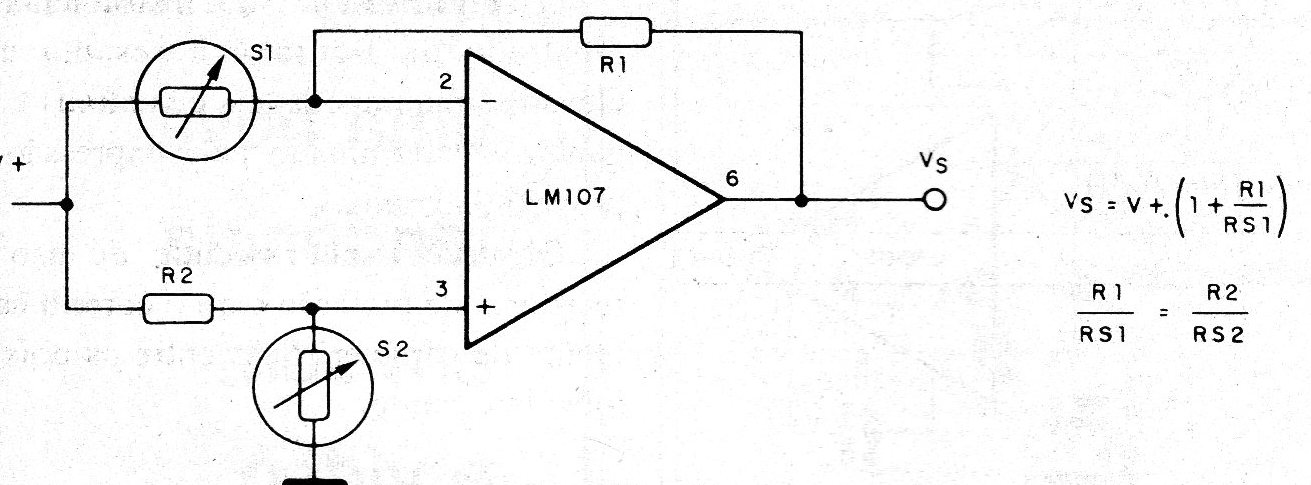

This is a bridged configuration for resistive sensors using an operational amplifier. The circuit is suggested by National Semiconductor and equivalent operational amplifiers can be used. The source must be symmetrical and the formulas next to the diagram relate the values of the components.
