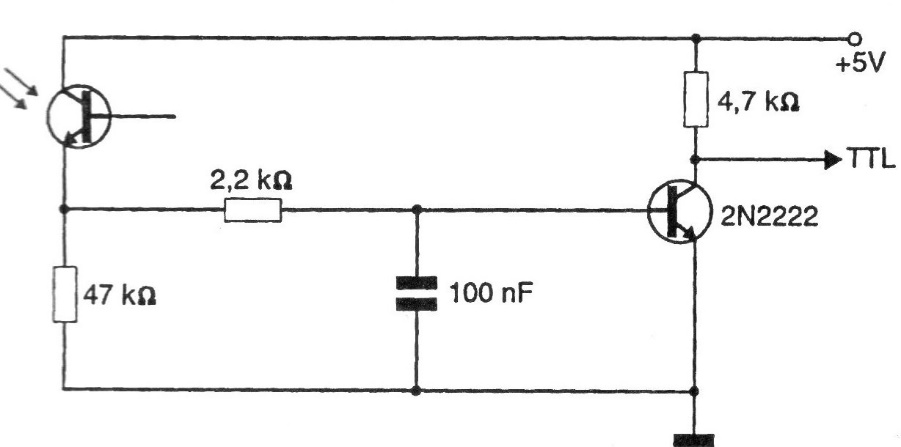

The purpose of this circuit is to excite a TTL input with lz pulses. The phototransistor can be of any type and the use of a lens depends on the desired sensitivity. The 100 nF capacitor must be chosen according to the desired response speed.
| Clique na imagem para ampliar |
