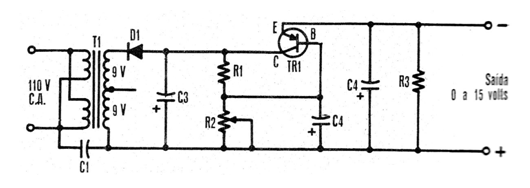

This simple power source with only one transistor can be used in the laboratory, without overload protection. The transistor must be equipped with a heat radiator. We found this circuit in a documentation from the 70s.
0 to 15 V x 500 mA Adjstable Power Supply (CB15849E)
- Details
- Written by: Newton C. Braga
