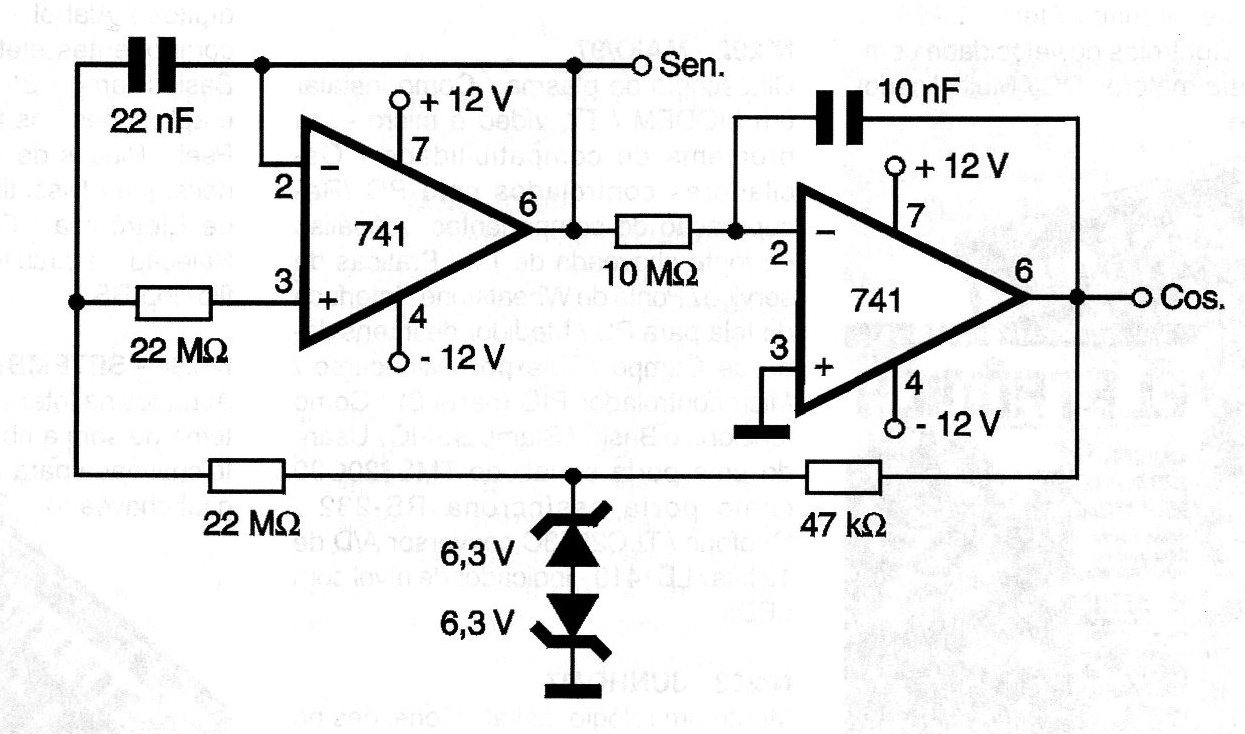

180 degrees out of phase signals are produced by this low frequency oscillator, using two 2 operational amplifiers of type 741 or equivalent. The power supply must be symmetrical and the zener diodes can be 400 mW. The capacitors determine the frequency of operation, which can eventually be changed.
