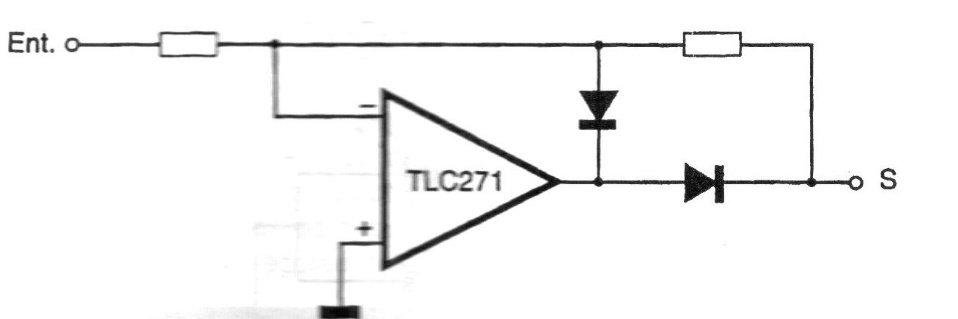

This is a precision half-wave rectifier, suggested by Texas Instruments. Diodes are commonly used, and resistors can have signal values. The power supply must be symmetrical.
| Clique na imagem para ampliar |
Half Wave Rectifier (CB15767E)
- Details
- Written by: Newton C. Braga
