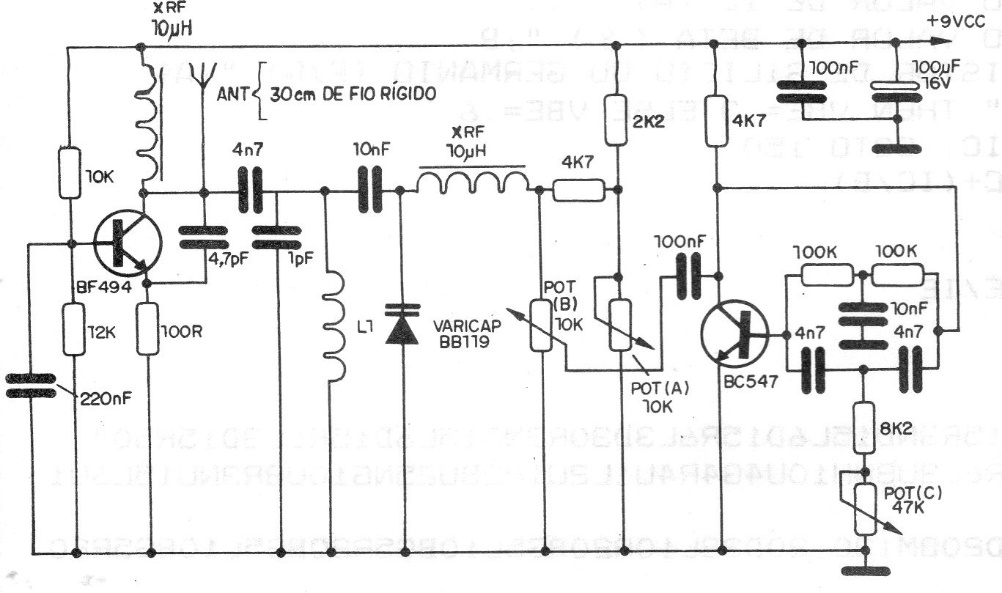

This circuit generates a signal in the tone-modulated FM range for tuning receivers. The circuit is controlled by varicap, so the frequency is selected by P1. The sound adjustment is adjusted in the other potentiometers. The coil consists of 4 turns of wire 22 or 24 in the form of 1 cm without core.
