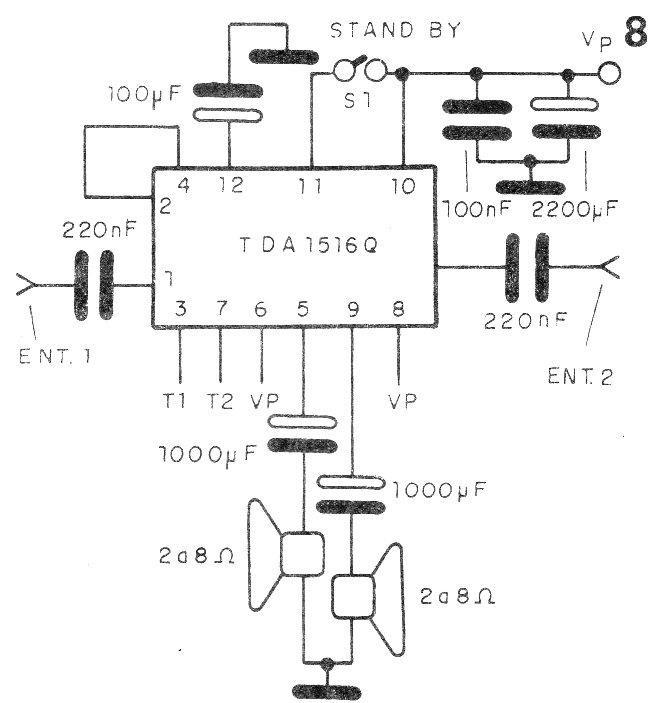

This is a Philips commercial circuit from the 90s. The integrated circuit must have a good heat sink and the source can be 14.4 V or car battery. The circuit has a pass-through range of 20 to 15 000 Hz and an input impedance of 60 k ohms.
