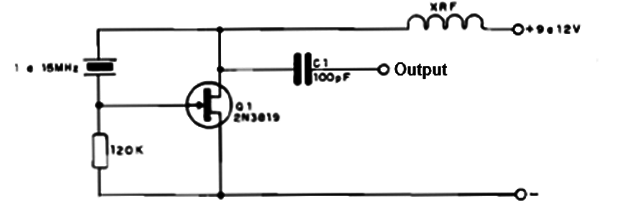

Frequency in this oscillator is controlled by a crystal. Any 1 MHz to 15 MHz can be used. The JFET can be replaced by equivalent. Supply voltages in the range from 9 to 12 V can be used. XRF can range from 100 µH to 470 µH.
