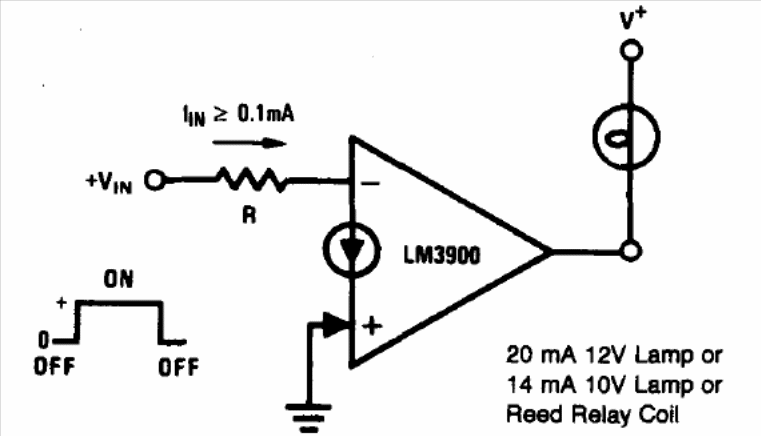

The figure shows how to use the LM3900 to drain current from a load of up to 20 mA with the LM3900. The circuit is from National Semiconductor's Linear Applications Handbook. The circuit triggers the load at the low level.
