Relaxation oscillator Using Bipolar Transistors (CB884E)

Details: Written by: Newton C. Braga

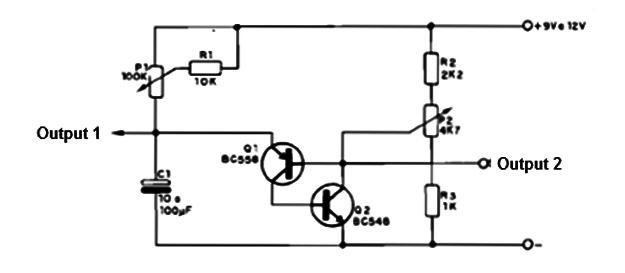

The frequency in this circuit is adjusted by P1 and given by C1. Short pulses, as the ones produced by UJTs, can be generated by this oscillator. P2 adjusts the trigger point.
