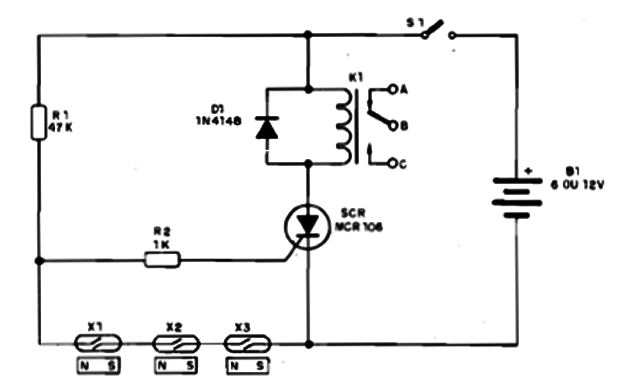

Many reed switches can be wired in series to perform na efficient alarm as shoen in the figure. Power supply must be 2 V highr than the coil of the relay to compensate voltage fall in the SCR. Current drain is very low when the relay is off.
Reed Switch Alarm (CB885E)
- Details
- Written by: Newton C. Braga
